SteelAngle
Equal and unequal steel angles — hot-rolled L-sections for bracing, framing, lintels and fabrication.

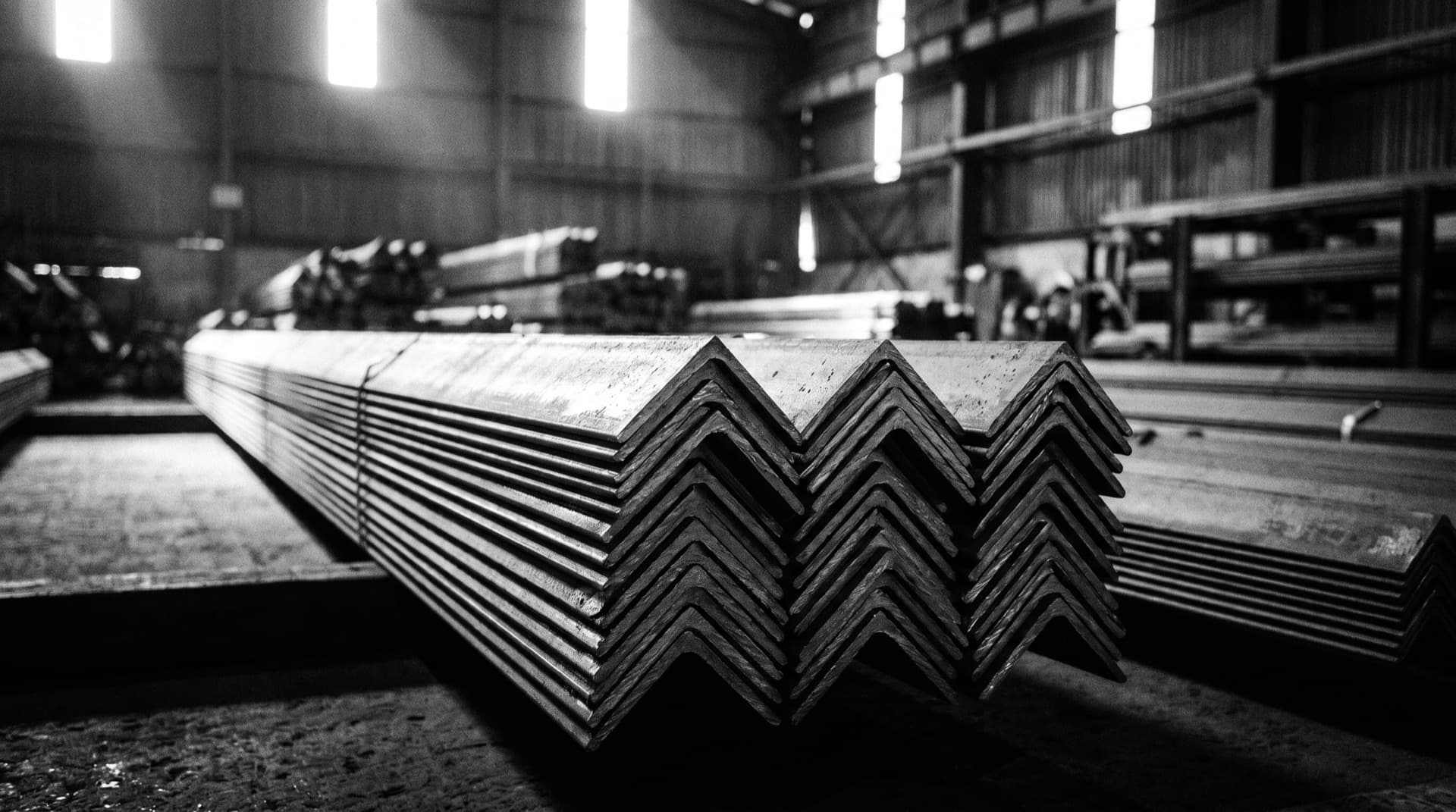

Steel angle is a hot-rolled L-shaped section used for bracing, framing, lintels, connections and general fabrication. We supply both equal and unequal angles across the full size range from 20×20 to 200×200, in Grade 300 to AS/NZS 3679.1, available black or hot-dip galvanised. Mill test certificates and cut-to-length service support compliant, efficient fabrication.
Product Range
Equal Angles
Equal-leg angles from 20×20×3 to 200×200×26 for bracing, framing and general fabrication.
Unequal Angles
Unequal-leg angles where differing leg lengths suit the connection or load configuration.
Grade 300 Structural Steel
Hot-rolled to AS/NZS 3679.1 in Grade 300 with verified strength and weldability.
Steel Angle Sizes & Properties
Full size charts with mass per metre and section properties to support design and selection.
Galvanised Steel Angle
Hot-dip galvanised equal and unequal angle to AS/NZS 4680 for lintels, fencing, rural structures, boat ramps and coastal work, or black angle cut to length for painting.
Steel Angle Sizes (Equal & Unequal)
Common Australian equal and unequal angle sizes to AS/NZS 3679.1 in Grade 300. Available black or hot-dip galvanised.
| Size (mm) | Thickness (mm) | Type |
|---|---|---|
| 20 × 20 | 3.0 | Equal |
| 25 × 25 | 3.0 – 6.0 | Equal |
| 40 × 40 | 3.0 – 6.0 | Equal |
| 50 × 50 | 3.0 – 8.0 | Equal |
| 65 × 65 | 5.0 – 10.0 | Equal |
| 75 × 75 | 5.0 – 10.0 | Equal |
| 100 × 100 | 6.0 – 12.0 | Equal |
| 125 × 125 | 8.0 – 16.0 | Equal |
| 150 × 150 | 10.0 – 19.0 | Equal |
| 75 × 50 | 5.0 – 8.0 | Unequal |
| 100 × 75 | 6.0 – 10.0 | Unequal |
| 150 × 90 | 8.0 – 16.0 | Unequal |
Additional sizes, grades, lengths and finishes available on request — contact us for a full size chart and quote.
Common Applications
- Bracing and structural connections
- Lintels and openings
- Framing, brackets and supports
- Trailers, gates and fabrication
- General engineering and repair
Relevant Standards
- AS/NZS 3679.1 — Hot-rolled structural steel bars and sections
- AS 4100 — Steel structures
- AS/NZS 4680 — Hot-dip galvanized (zinc) coatings on fabricated ferrous articles
Steel Angle — Frequently Asked Questions
What steel angle sizes do you supply?
Equal angles from 20 × 20 to 200 × 200 mm and unequal angles from 65 × 50 to 150 × 100 mm, in thicknesses from 3 to 20 mm, Grade 300 to AS/NZS 3679.1.
What is steel angle used for?
Bracing, lintels, frames, brackets, shelving, trailer bodies and edge protection. Equal angle is the general-purpose choice; unequal angle is used where one leg needs more depth for bending.
Do you supply galvanised steel angle?
Yes. Galvanised angle is hot-dip galvanised to AS/NZS 4680 after rolling, so the coating covers every face and edge. It is the standard choice for lintels, fence rails, rural and coastal work. Common galvanised sizes run from 25 × 25 to 150 × 100 mm, with mill certificates for every heat.
